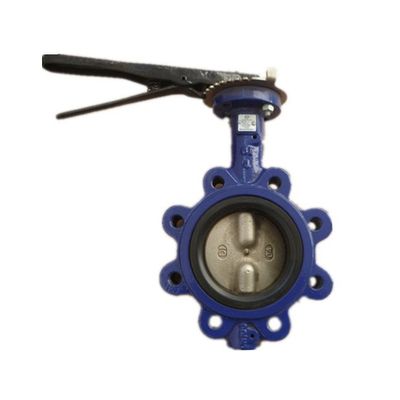

WAK LUG
WAK LUG
PRODUCT DETAILS

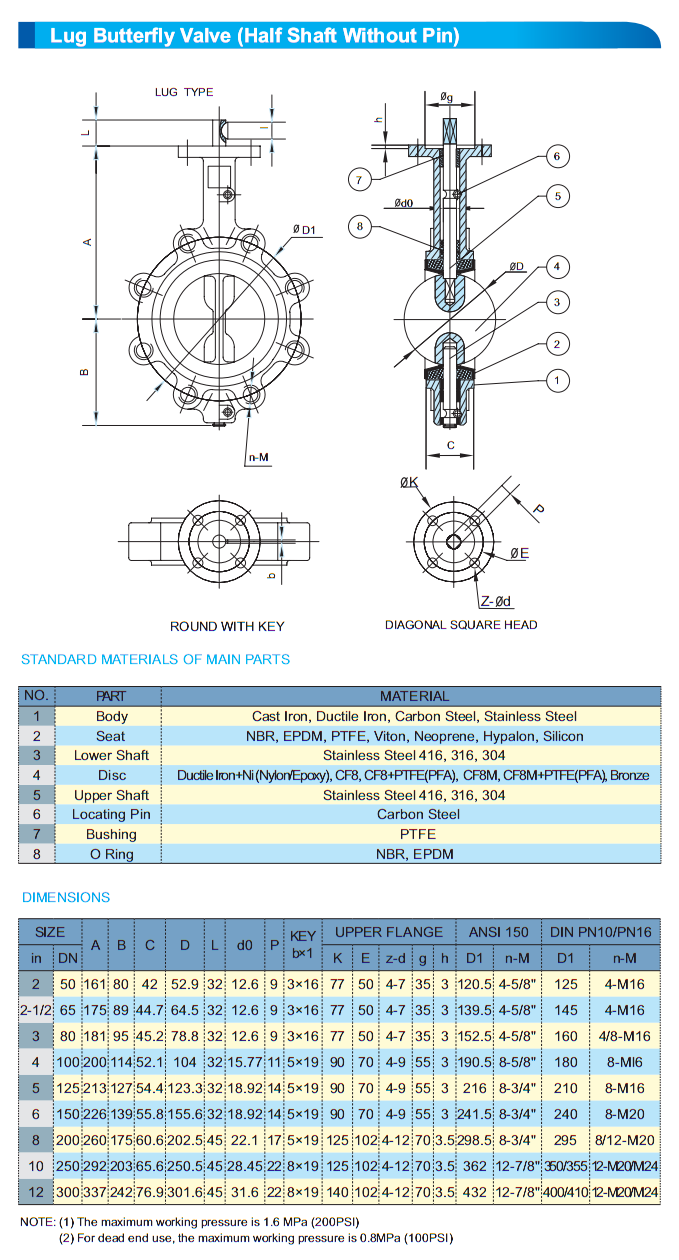

Type: Lugged
Suitable Medium: Chemicals, air, water, steam, oil, acids, salts, etc
  • Material

    Body

    Cast Iron, Ductile Iron, Carbon Steel,                Stainless Steel


    Disc

    Ductile Iron, Carbon Steel, Stainless Steel


    Stem

    Stainless Steel


    Seat

    EPDM, NBR, PTFE,    , HYPALON


    O ring

    EPDM, NBR

  • Body Type
    • Lugged
  • Production Range
    • DN50 - DN600
  • Face to Face
    • EN 588 - 1  20 Series (DIN 3202 T3 K1)
    • ISO 5752  T5 short type
    • API 609
    • BS5155 serie 4/5 (except.DN350)
  • Standard Max working pressure
    • PN10/16, 150-300LB
  • Working temperature
    • -30。c - 135。C
  • Hydraulic tests
    • EN 12266-1
  • Top Flange
    • ISO 5211
  • Drilling Norm
    • DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
