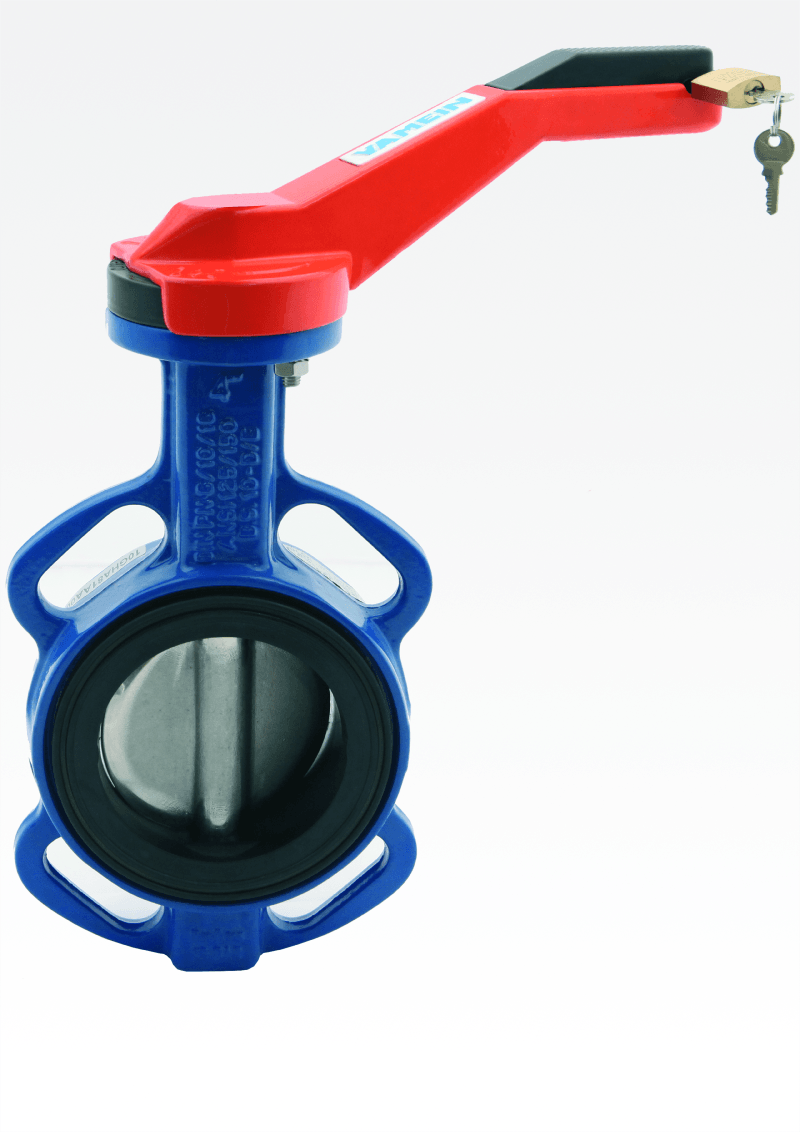

VAMEIN WAFER
Butterflyventiler > Vamein Wafer
VAMEIN WAFER
Production Range:
DN 50-1200 mm
Flange Drilling:
Multiflange system from DN-50 (2") to DN-300 (12") allowing with only one model of valve, the assembly between PN-6, PN-10, PN-16, ASME-B 16.5 125/150 Lbs and B.S. 10-D/E flanges. From DN-350 (14") flanges are assembled according to PN-10, PN-16, ASME B 16.5 150 Lbs or ASME B 16.47 A-SERIES 150 Lbs, BS, AWWA, and any other standard on request.
Standard Maximum working pressure:
16 bar (DN 50-300) and 10 bar (DN 350-2000). For higher working pressures, ask our Technical Department.
Temperature Range:
– 40ºC to +180ºC (depending on liners and coatings).
The design includes four centring holes to allow a perfect alignment and quick fitting between flanges, up to DN-500 mm (20"). From DN-600 mm (24") onwards we include tapped holes on both sides of the body as well as the four centring holes.
As this is a pattern to be fitted between flanges, the mechanical stress of the pipe is transmitted to the valve only by compression on the body and there is no mechanical tension stress which might create watertightness problems. (It is necessary to take into consideration that DN-600 mm - 24" bodies and larger have four tapped holes on both.
DOWNLOAD CENTER
W-001 DN50 - DN300 Hand Lever
W-001 DN50 - DN300 Bare shaft
W-002 DN350 - 500 Bare shaft
W-003 DN600/DN700/DN1200 Bare shaft
W-004 DN650/750/800/900/1000 Bare shaft
W-005 DN1300 - DN2000 Bare shaft
W-006 DN50 - DN200 Hand lever
W-007 DN250- DN300 Hand lever
W-008 DN50 - DN300 Gear box
W-010 DN350 - DN500 Gear box
W-011 DN600 / DN700 /DN1200 Gear box
W-012 DN600/DN750/DN800/DN900/DN1200 Gear box
W-013 DN1300-DN2000 Gear box
